Airbus A321neo
-
3NE
-
3NP
Seat Specifications
|
|
|||
|---|---|---|---|
ACCOMMODATION (194 SEATS)
|
20 Seats
|
60 Seats
|
114 Seats
|
SEAT WIDTH/PITCH
|
21 in/37 in
|
18 in/33-34 in
|
18 in/31 in
|
CHILD SEAT FIT GUIDE Aircraft seat width max |
21 in 53 cm |
18 in 46 cm |
17.3 in 43.9 cm |
UNDERSEAT DIMENSIONS (depth x width x height) |
20 in x 15 in x 8 in
|
20 in x 19 in x 9 in
|
20 in x 19 in x 9 in
|
AMENITIES
|
|
|
|
|
|
|
|
|---|---|---|
Flat Bed |
Wi-Fi |
USB In-Seat Power |
In-Seat Power Outlet |
Personal Video |
Satellite TV |
Seat Map
|
|
|
|
|
|---|---|---|---|
EXITS (8) |
GALLEYS (2) |
LAVATORIES (4) |
|
DELTA FIRST |
DELTA COMFORT |
PREFERRED |
DELTA MAIN |
Aircraft Specifications
CRUISING SPEED
525 mph (845 km/h)
RANGE
3,370 miles (5,423 km)
ENGINES
2 Turbofans (wing mounted)
Accessibility Information
- Maximum dimensions for an assistive device carried in the cargo hold: 46 in (height) x 69 in (width)
- Maximum weight for an assistive device carried in the cargo hold: 85 lb/sq ft
- Movable armrest locations:
- Delta First: All aisle seats
- Delta Comfort: 11 - 12 D, 13 - 18 CD
- Delta Main: 21 - 39 CD
- Wheelchair accessible lavatory location: Behind row 39, seats ABC

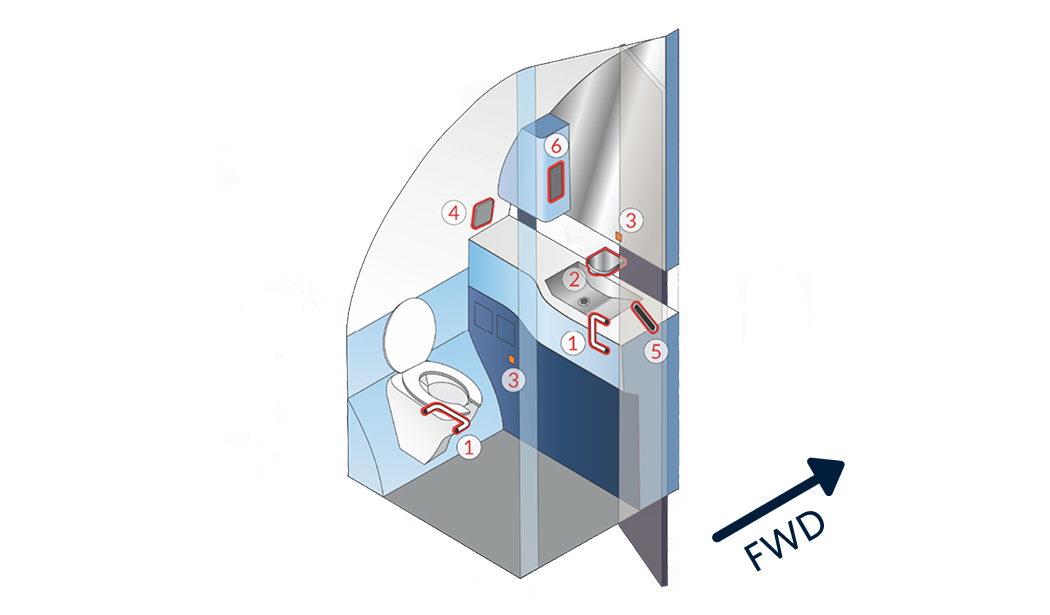

Availability of features on select aircraft:
- Grab bars
- Faucet
- Attendant call button(s)
- Flush switch
- Door lock
- Paper towel dispenser
Disclaimer: Lavatory image shown for illustrative purpose only.
|
|
|||
|---|---|---|---|
ACCOMMODATION (164 SEATS)
|
44 Seats
|
54 Seats
|
66 Seats
|
SEAT WIDTH/PITCH
|
21 in/38 in
|
18 in/34 in
|
18 in/31-32 in
|
CHILD SEAT FIT GUIDE Aircraft seat width max |
21 in 53 cm
|
17.3 in 43.9 cm
|
17.3 in 43.9 cm
|
UNDERSEAT DIMENSIONS (depth x width x height) |
20 in x 15 in x 8 in
|
20 in x 19 in x 9 in
|
20 in x 19 in x 9 in
|
AMENITIES
|
|
|
|
Amenities Key
|
|
|
|
|---|---|---|
|
Flat Bed |
Wi-Fi |
USB In-Seat Power |
|
In-Seat Power Outlet |
Personal Video |
Satellite TV |
|
|
|
|
|
|---|---|---|---|
|
EXITS (8) |
GALLEYS (2) |
LAVATORIES (4) |
|
|
DELTA FIRST |
DELTA COMFORT |
PREFERRED |
DELTA MAIN |
CRUISING SPEED
525 mph (845 km/h)
RANGE
3,300 miles (5,310 km)
ENGINES
2 Turbofans (wing mounted)
- Maximum dimensions for an assistive device carried in the cargo hold: 46 in (height) x 69 in (width)
- Maximum weight for an assistive device carried in the cargo hold: 85 lb/sq ft
- Movable armrest locations:
- Delta First: All aisle seats (1-11B and 1-11C)
- Delta Comfort: aisle seats in rows 16-21 only (16-21C and 16-21D)
- Delta Main: all aisle seats except 24C (22-24D, 25-33C, 25-33D)
- Wheelchair accessible lavatory location: Behind row 39, seats ABC
Availability of features on select aircraft:
- Grab bars
- Faucet
- Attendant call button(s)
- Flush switch
- Door lock
- Paper towel dispenser
Disclaimer: Lavatory image shown for illustrative purpose only.
